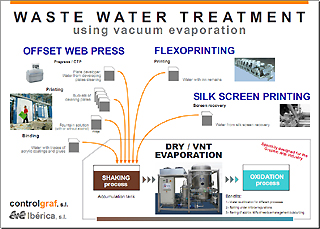

	  Vacuum evaporation wastewater management SchemeMinimize quickly and efficiently the amount of residue, concentrating as much as possible the pollutant solid
and reusing the water once distilled.

ZOOM >>>

Vacuum evaporatorsMinimize quickly and efficiently the amount of residue, concentrating
as much as possible the pollutant solid and reusing the water once distilled.

- Treatment of wastewater withacrylic paint residue
- Treatment of waste water fromcleaning plates
- Wastewater treatment with traces of ink (screen printing / flexo)
- Wastewater from rubbers buckets cleaning (solvent-free!!)
- Water-alcohol / dampening system
-Wastewater from developers plate
- Wastewater from gluing machines
- Other ...

Vacuum evaporatorsTECNICAL DATA
- Unit of wastewater treatment
- Performance:
  ·DRY: 150, 250, 350, 500 or 1000 Ltrs. / 24 hrs.
  ·VNT (vertical arrangement):100, 250, 350, 500 or 1000 Ltrs./24 hrs.
- Low power consumption
- Requires little maintenance
- Requires small space
- Possibility of using evaporated water for various uses
    - DRY: dries up the solid residue resulting from the water separation.
    - VNT: fully automated process.

Vacuum evaporatorsControlgraf industrial evaporators may include an output ozone generator, ensuring compliance with the current parameters in discharge limits to the public network. Ask for the possibility of testing a unit incompany.

Evaporador VNT en el periódico ABC
The first Spanish newspaper using vacuum evaporation technology in the rotary press wastewater treatement and recycle.
ABC newspaper:
Water treated by vacuum evaporation>>>

Wastewater treatment
	   and separation by vacuum

Industrial wastewater vacuum evaporator

Wastewater treatment and separation by vacuum evaporation technology.

[ + ] Info>>>
